Illusion Settings: Making Small Diamonds Look Bigger

Close inspection of some vintage rings reveals something unexpected: the sparkling center “diamond” is often much smaller than it appears, sitting inside a shaped metal collar that does most of the visual work. This is called an illusion setting, and it has quietly helped generations of jewelers stretch a small stone into a large-looking centerpiece. It isn’t a trick in the dishonest sense — a reputable jeweler discloses exactly what’s being sold — but it is a clever piece of design that plays with light, shape, and metal the way an optical illusion plays with the eyes.

Illusion Setting Definition

An illusion setting is a style of mounting where a small diamond sits inside a specially shaped metal plate that makes it look larger than it really is. The metal around the stone is cut, grooved, or faceted so it catches light the same way a diamond does, and its outer edge extends well past where the actual diamond ends. The eye reads the whole shiny shape as one large stone, even though the real diamond may be only a fraction of that size.

The setting works almost like a picture frame built to blend into the picture. Instead of a plain band of metal holding the stone, the metal itself becomes part of the sparkle. Jewelers usually use this technique on small, round diamonds, though it has shown up on other shapes too over the decades.

The setting also goes by other names: “monture illusion” (its original French name), “mirage setting,” and “deceptive setting.” All three point to the same idea — the metal performs part of the job normally left entirely to the stone.

An illusion setting doesn’t change the diamond at all — it changes what’s around it. The stone keeps its real carat weight; only its appearance shifts.

How Does an Illusion Setting Work?

It works by surrounding the diamond with polished, light-reflecting metal cut to mimic the stone’s own facets. The metal plate or collar sits right against the diamond’s girdle (the widest part of the stone), and its edges are shaped with tiny cuts that bounce light in a similar pattern to the diamond itself. Because both the stone and the metal sparkle in the same way, the brain blends them into a single, larger-looking gem.

• White metals like platinum, white gold, or rhodium-plated settings work best, since white metal blends more smoothly with a diamond’s color and brightness than yellow gold does.
• The plate can be built right into the ring’s head, or made separately and soldered on.
• A well-cut illusion setting can make a diamond around 0.10 to 0.25 carats appear nearly double its real size, and smaller melee diamonds in the 2 to 3mm range can appear two to three times larger, when viewed from above.

Jewelers often use the term “melee” for these small diamonds, which simply means tiny accent-sized stones rather than one large center stone. Because melee diamonds are already cheaper per stone, pairing them with an illusion plate gave jewelers a way to produce a ring that reads as bold from across the room, even on a modest budget.

This only works from certain angles, though. Viewed from the side, the line where metal ends and stone begins is usually visible. From straight on, the illusion holds up far better, which is why these rings are designed with the casual viewer in mind rather than a jeweler’s loupe.

The Origin of the Illusion Setting

The illusion setting was created by French jeweler Oscar Massin in the 1860s, and the French name for it, “monture illusion,” is still used by some jewelry historians today. Massin was already well known in Paris for inventive diamond work, including delicate techniques that made flowers and leaves tremble realistically when worn, and his illusion idea became one of several design tricks he’s remembered for.

The setting didn’t stay niche for long. It became especially popular from the 1920s through the 1940s, a stretch of time that included the Great Depression and World War II, when money and materials were both tight. Engaged couples still wanted a ring with visual presence, but large diamonds were expensive and sometimes hard to source. During the war years specifically, platinum was also classified as a strategic metal needed for military equipment, which pushed many jewelers toward white gold for settings like this one. Illusion settings let jewelers deliver a ring that looked impressive without needing an impressive stone or an abundant metal supply to back it up.

Even after diamonds became more affordable again, the style never fully disappeared. It still shows up in vintage-inspired collections and budget-friendly rings today, often marketed as a way to get a bigger look without a bigger price tag.

What to Expect From a Modern Illusion Setting

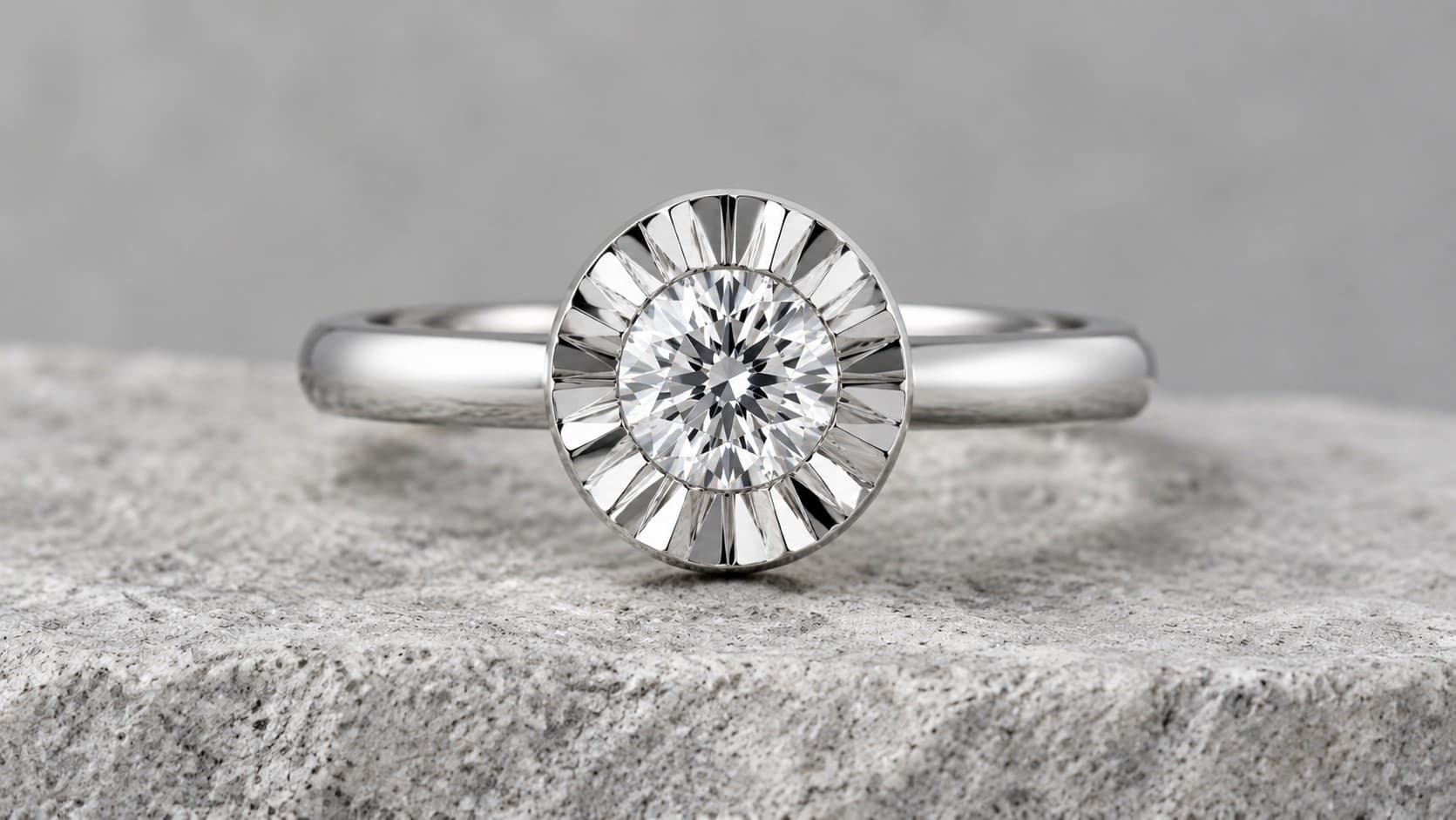

Most modern illusion settings use a round brilliant-cut diamond sitting in a scalloped or starburst-shaped white metal plate. The plate’s edges are usually cut into small facets or a fluted pattern, almost like a tiny sunburst, so that light hits the metal in short, bright flashes similar to a diamond’s sparkle.

1. The diamond is secured in a discreet setting — often small prongs — at the center of the plate.
2. The plate’s outer rim is carved or stamped with a repeating pattern that catches light.
3. The whole unit is mounted onto the ring shank, sometimes with smaller accent diamonds along the band.

Men’s rings, vintage-style engagement rings, and budget pieces are the most common places this setting appears today. It’s less common in modern fine jewelry built around larger center stones, simply because there’s no need to disguise a diamond that’s already large enough to stand on its own.

Does an Illusion Setting Damage the Diamond?

No, an illusion setting doesn’t damage or put the diamond at risk, as long as the plate and the seat holding the stone are well made. The diamond itself is just as hard and durable sitting in an illusion mount as it would be in any other setting. The metal plate wraps around and under the stone rather than squeezing or stressing it in any unusual way.

That said, a poorly fitted illusion setting can cause practical problems. If the plate isn’t snug against the stone, dirt and skin oils collect in the gap between the metal and the diamond’s girdle, which dulls the sparkle over time and makes the larger-looking effect fall apart. The fluted or faceted grooves in the plate itself also trap grime more easily than a plain band would, simply because there’s more surface detail for residue to settle into.

Regular cleaning keeps the illusion looking sharp. A soft brush, mild soapy water, and a gentle pat dry usually clear out the grooves without any special tools. On an older ring, or one with any loose or thin sections in the plate, having a jeweler check the setting before an ultrasonic cleaner is used is the safer route.

Does an Illusion Setting Affect Diamond Value?

Yes, in a specific way: an illusion setting makes it harder to estimate a diamond’s carat weight just by looking at it. Appraisers and gemological labs can measure a diamond accurately once it’s removed from its mount, but while it’s still sitting in an illusion setting, the visible size is intentionally misleading. A jeweler trained to spot this notes on an appraisal that the stone is in an illusion setting, which signals that the apparent size and the real carat weight are two different things.

This matters most when buying a secondhand or antique ring where the seller only offers a rough size estimate based on looks. Requesting the diamond’s actual measurements or carat weight in writing, rather than relying on how large the stone appears while mounted, closes that gap. The same applies when insuring the ring — an insurance appraisal should reflect the diamond’s true weight, not its visual impression, so the coverage matches what is actually owned.

Several points are worth confirming before buying or insuring a ring built on an illusion setting:

• The diamond’s actual carat weight, separate from how large it looks in the setting.
• The diamond’s measurements in millimeters, rather than just an estimated carat range.
• Whether the ring has been appraised since it was last sold, or still carries only the original sale appraisal.
• Whether the setting is original to the ring, or the plate has been replaced or resized.

A jeweler who works with illusion settings regularly answers all four without hesitation. Difficulty separating the stone’s real weight from its visual size is a reasonable caution sign.

Frequently Asked Questions

The Bottom Line

Illusion settings are a reminder that not every eye-catching ring tells the whole story at a glance — the sparkle on display is sometimes a team effort between a small diamond and a cleverly cut piece of metal. Understanding how the setting works makes the craftsmanship behind it easier to appreciate, whether the context is a budget-friendly engagement ring or an inherited piece being dated for the first time. The core takeaway: a diamond’s real size and its visual size are two separate facts, and a reputable jeweler stays upfront about which one is being paid for.
